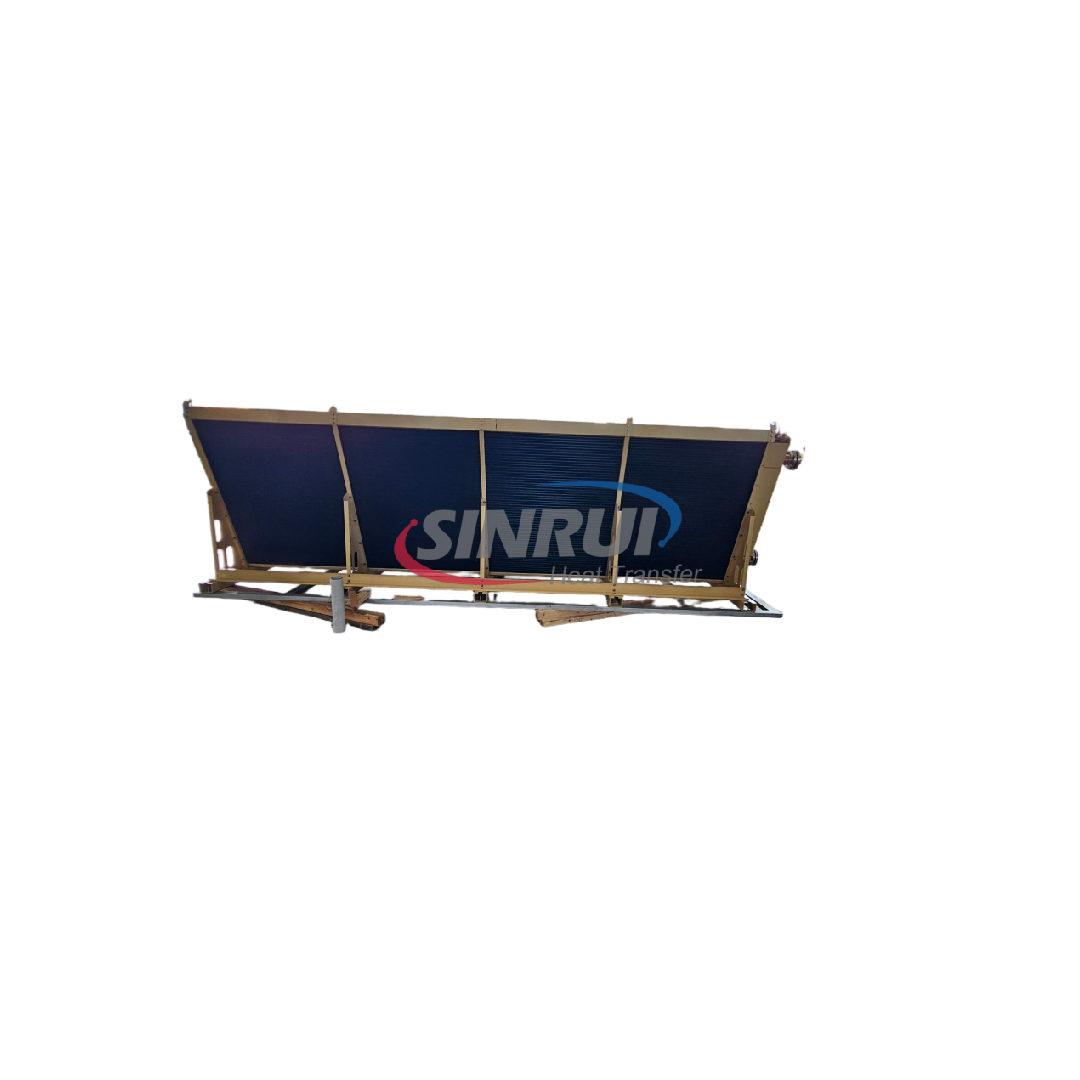

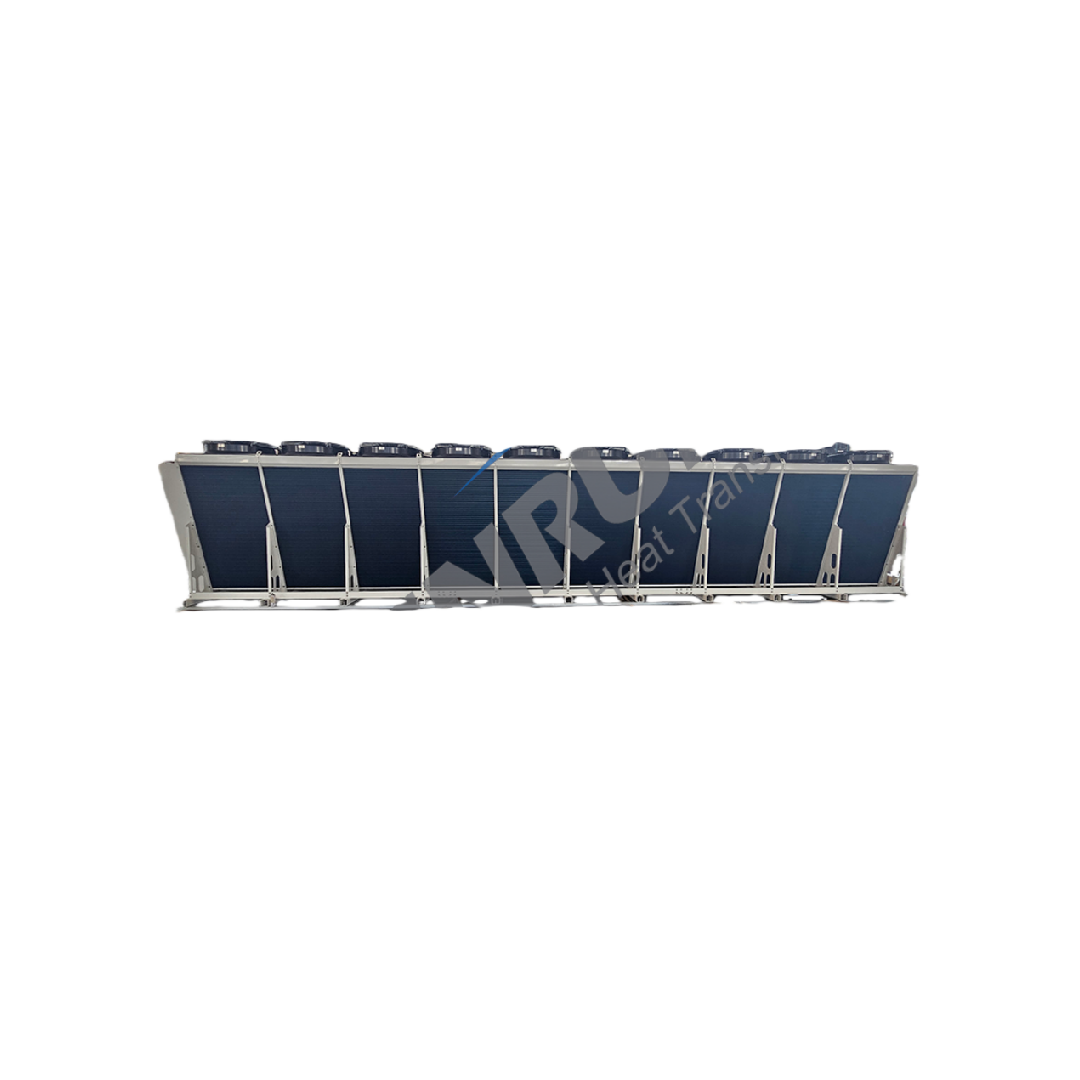

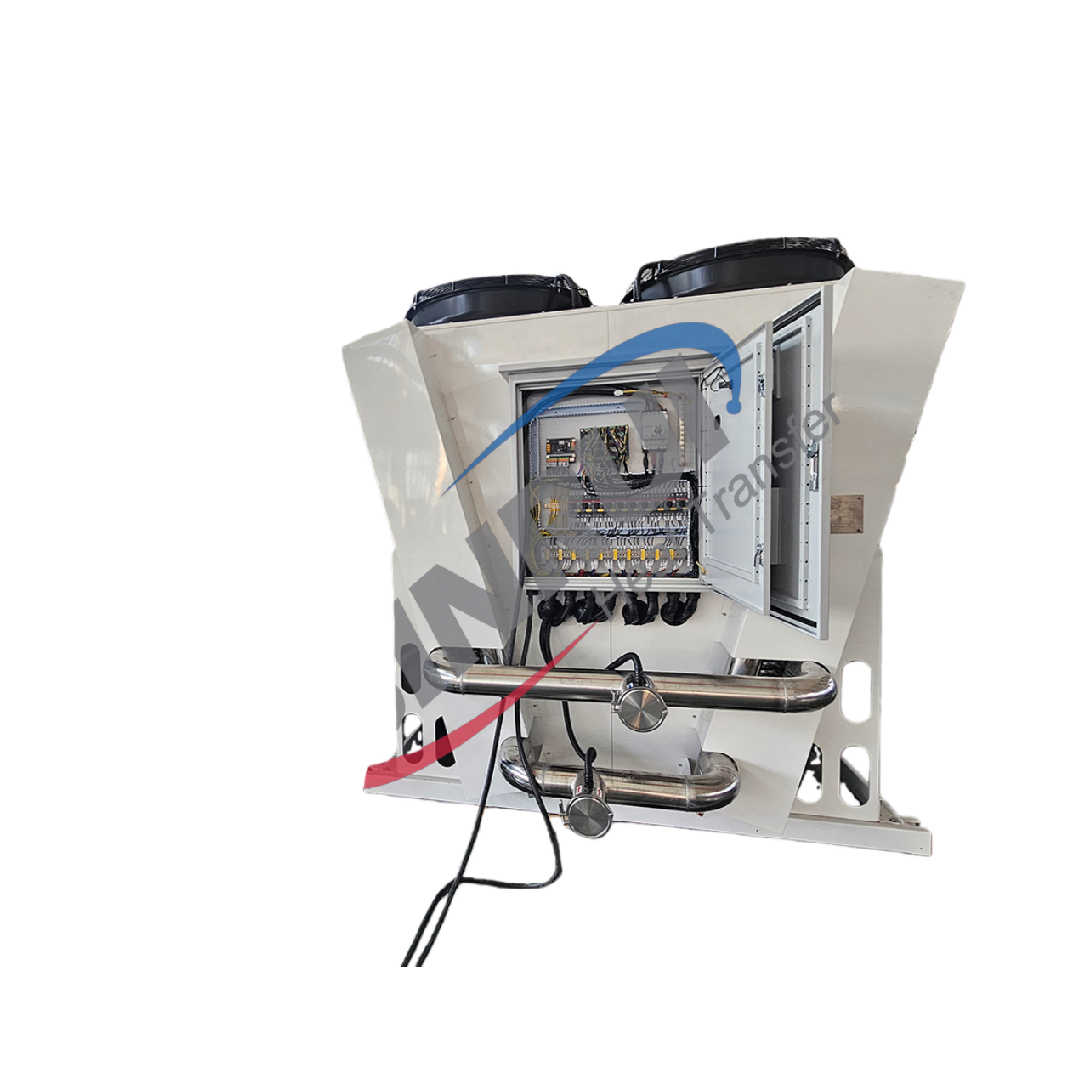

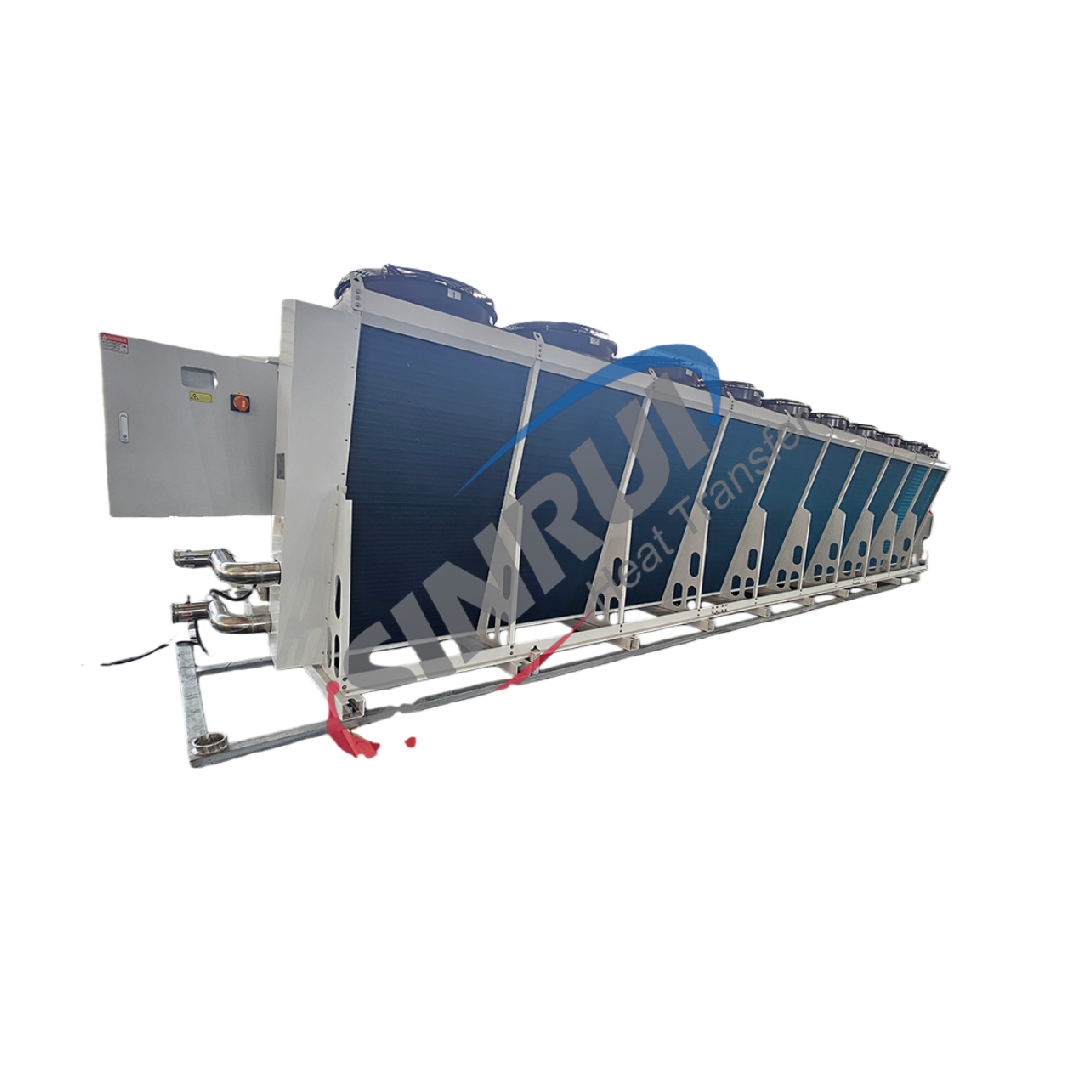

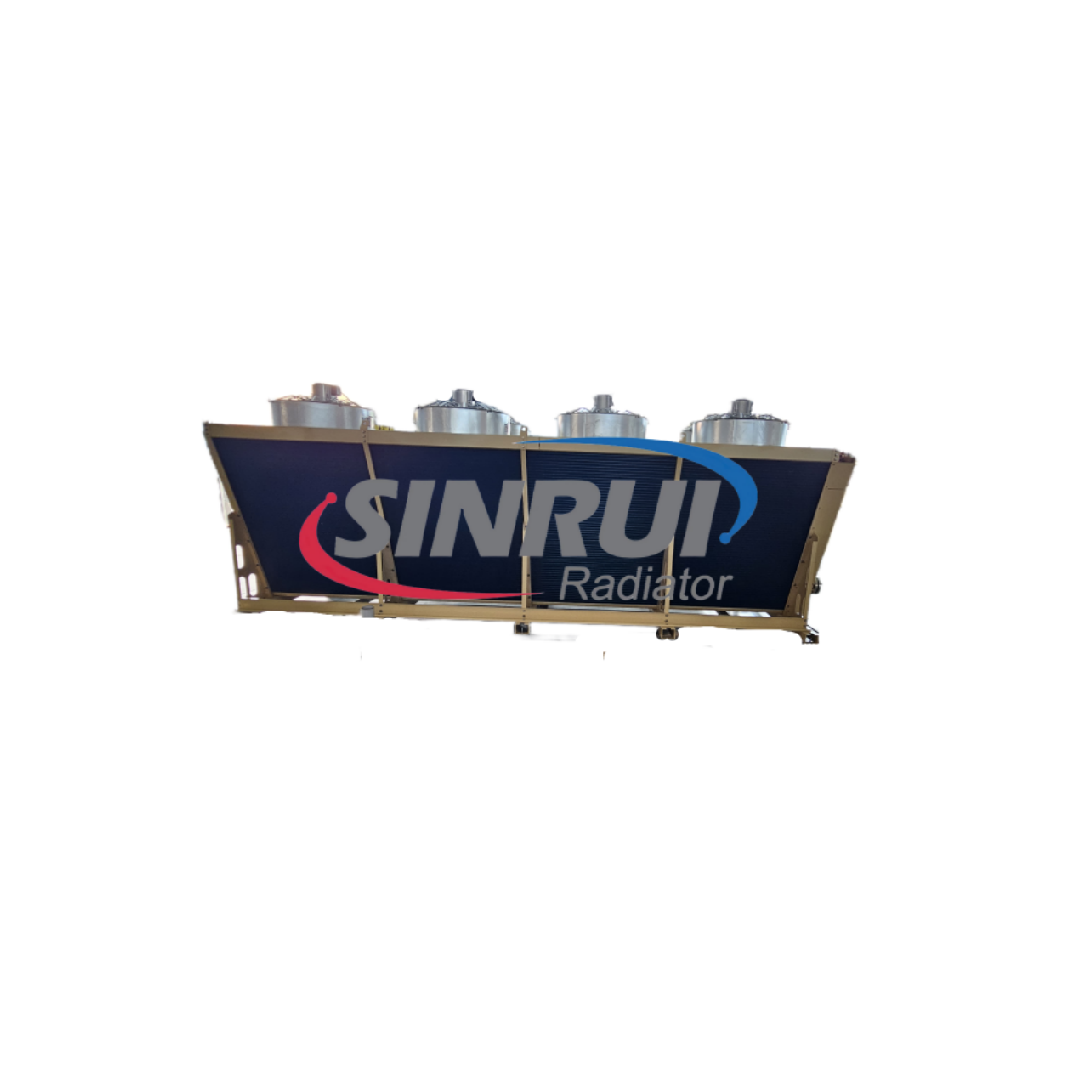

Professional dry cooler for crypto mining farms, handles ASIC/GPU miners’ constant high heat load. Prevents overheating & hash drop, dust-proof, modular design for 24/7 uninterrupted mining cooling.
Precision Raw Material Processing
Heat exchange fins: Hydrophilic aluminum foil straight fins, stainless steel straight plates
Heat exchange coils: High-efficiency copper tubes, stainless steel tubes
Sheet metal materials: Stainless steel, galvanized steel plate, aluminum-zinc plated steel plate
Header materials: Carbon steel, stainless steel, copper tubes
Copper tube cutting: Drilling, laser cutting
Header cutting: According to design requirements
Sheet metal cutting: Stamping, straightening, laser cutting, bending
Heat exchange fin cutting: According to the distribution spacing of copper tubes
Quality Inspection & Monitoring
Leakage test: 3--4 MPa nitrogen pressure test, pressure holding test (double guarantee)
100% endoscope inspection of the inner surface of the coil to ensure no contamination or deformation
Modular Integration & Assembly
Modular design of all components, saving design and manufacturing time
Lifting lugs are provided at the bottom for hoisting and handling, enabling elevated group installation
The tubes are double expanded to ensure tight contact between tubes and fins
Final power-on test to verify the actual operation of the radiator
Heat Transfer capacity: 250kw
Cooling medium: Oil
Medium flow rate: 100gpm
Inlet medium temp: 60
Outlet medium temp: 40
Inlet air temp: 32
Power Supply: 451v/3ph/60Hz
Maintance
Customization
SINRUI Mining offers customized radiator design and manufacturing services for mining and industrial applications. For customers who wish to upgrade or modify from the original structure or material, our engineering team can provide technical drawings, performance evaluations, and structure redesign based on specific site conditions.
·We support tailored solutions including:
··Replacement of aluminum cores with copper fin - tube designs for improved durability.
··Adaptation of mounting structures for non - OEM equipment.
