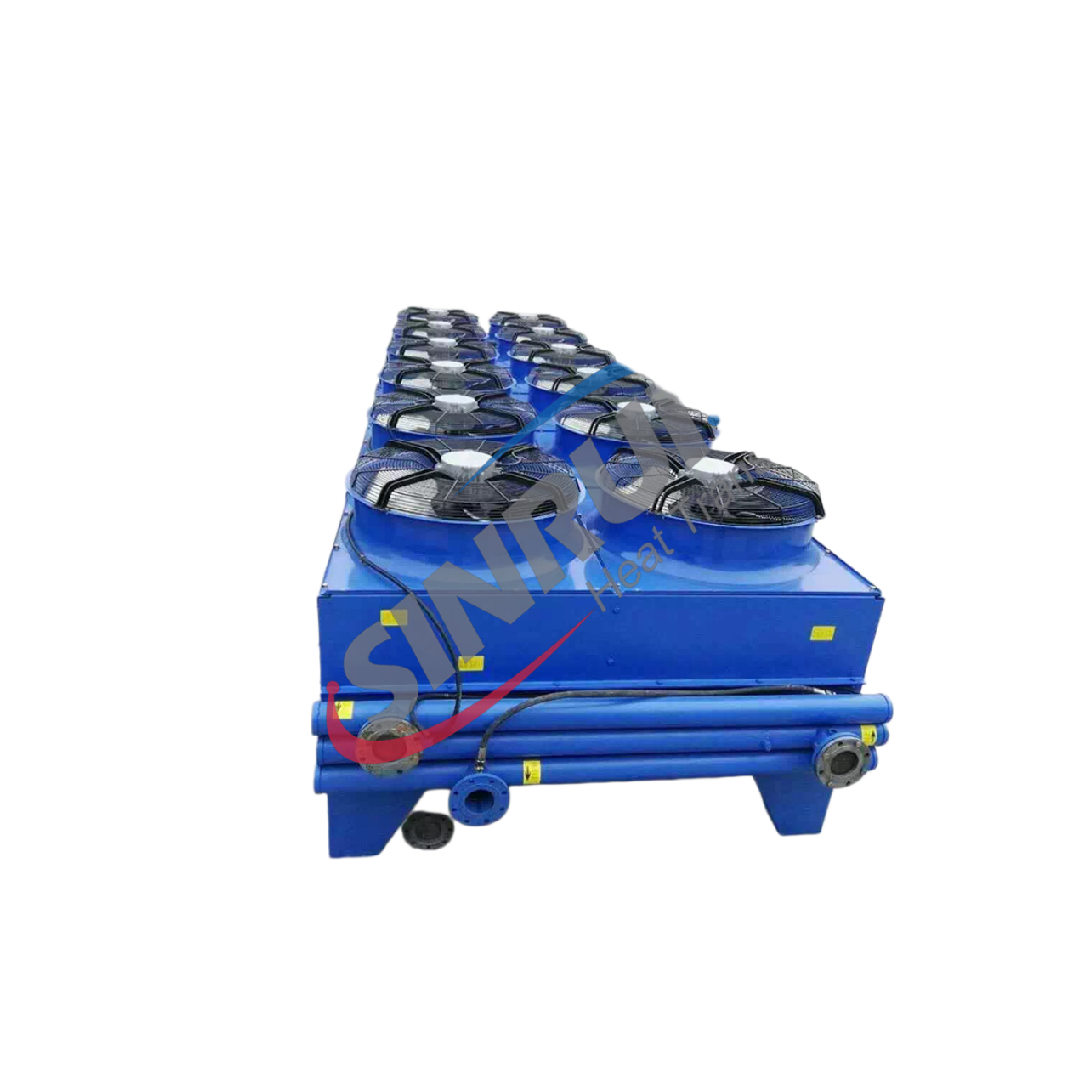

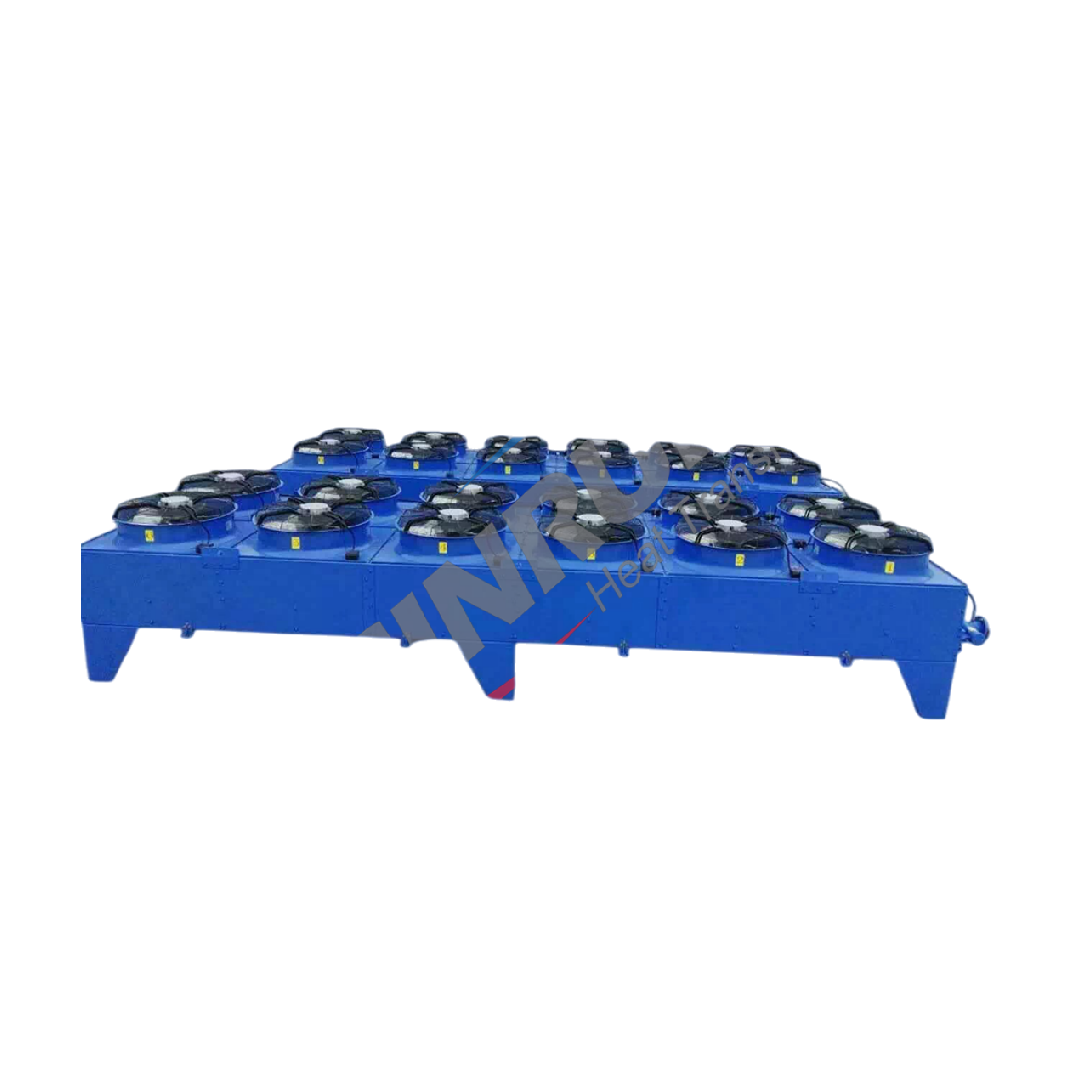

Professional dry cooler for crypto mining farms, handles ASIC/GPU miners’ constant high heat load. Prevents overheating & hash drop, dust-proof, modular design for 24/7 uninterrupted mining cooling.
I. Core Heat Exchange Components
Heat Exchange Coil: As the core heat exchange element of the equipment, it runs through the entire radiator core. Copper tube is adopted as the standard configuration, which delivers the optimal heat dissipation and exchange efficiency. Alternatively, it can be customized with 304/316 stainless steel tube as required.
Heat Exchange Fin: Blue clean aluminum foil fin is the standard configuration. It features excellent corrosion resistance, high-efficiency heat dissipation and a long service life with outstanding comprehensive performance. Stainless steel fin is available as an alternative option, which has inferior heat dissipation, corrosion resistance and service life compared with aluminum foil fin, and is only suitable for working conditions with low heat dissipation requirements from customers.
II. Basic Supporting Components
Cooling Fan: Accelerates air circulation and improves the overall heat exchange efficiency.
Equipment Frame: The standard material is steel coil / galvalume coil, which has inherent basic anti-corrosion performance and is suitable for various general industrial environments. For equipment installed in coastal/near-coastal areas, additional anti-corrosion paint coating can be applied to enhance corrosion resistance.
Other Standard Components: Complete control system + cable system, protective grille and safety protection components are included as standard.
Optional Component: Anti-freezing device, which can be additionally installed and configured according to the ambient temperature requirements of customers' application sites.
III. Key Auxiliary Connection Component
Header: Stainless steel is used as the standard material, featuring a high cost performance and suitable for regular working conditions. For customers with high-standard requirements, it can be upgraded to copper tube material.
|
Technical Parameters |
||||
|
|
Working Fluid |
Heat Exchange Capacity |
Test Pressure |
Fin Pitch |
|
Condenser |
HFC |
132-2060 |
32 bar |
2.0/2.4/3.0mm |
|
Dry Cooler |
Ethylene glycol |
95-1260 |
16 bar |
2.0/2.4/3.0mm |
|
Available Spare Parts |
||||
|
Spare Part |
HFC |
Liquid Cooling |
||
|
V Multi-circuit coil |
√ |
√ |
||
|
Fan junction box |
√ |
√ |
||
|
Fan safety switch |
√ |
√ |
||
|
Fan speed control |
√ |
√ |
||
|
Spray/water precooling system |
√ |
√ |
||
|
Flange connection |
|
√ |
||
|
Threaded connection |
|
√ |
||
|
Ball valve drain/vent |
|
√ |
||
Maintance
Customization
SINRUI offers customized radiator design and manufacturing services for mining and industrial applications. For customers who wish to upgrade or modify from the original structure or material, our engineering team can provide technical drawings, performance evaluations, and structure redesign based on specific site conditions.
·We support tailored solutions including:
··Replacement of aluminum cores with copper fin - tube designs for improved durability.
··Adaptation of mounting structures for non - OEM equipment.
