Gas or diesel generators are essential in areas without standard electrical infrastructure and for emergency backup during power outages. XINRUI's air-cooled remote radiators offer reliable, customized cooling solutions.
01 Modular design:
All components are of modular design that saves the designing and fabrication time. Tailored design are available to meet the customer's needs.
02 Easy Installation:
Lifting eyes are provided for lifting and handling that allows elevated installation in a group. Optimized structure design, minimal steel usage.
03 Control System:
PID controller provided for precise temperature control. VSD (Variable Speed Drive) for fans. Each fan is compartmentalized from each other, the temperature can be controlled separately. The failure of one fan will not affect the running of the other fans. The air short-circuit is not possible.
04 High Reliability:
The metal sheets are reinforced by multiple forming and pressing. It can be handled by crane or forklift. The tubes are hy-draulically expanded to ensure tight contact between tubes and fins which is the key for excellent heat transfer property.
05 Clean Tubes:
The tubes and manifold are clean internally, no discoloration. The interior surface of the coils are 100% inspected by the endoscope.

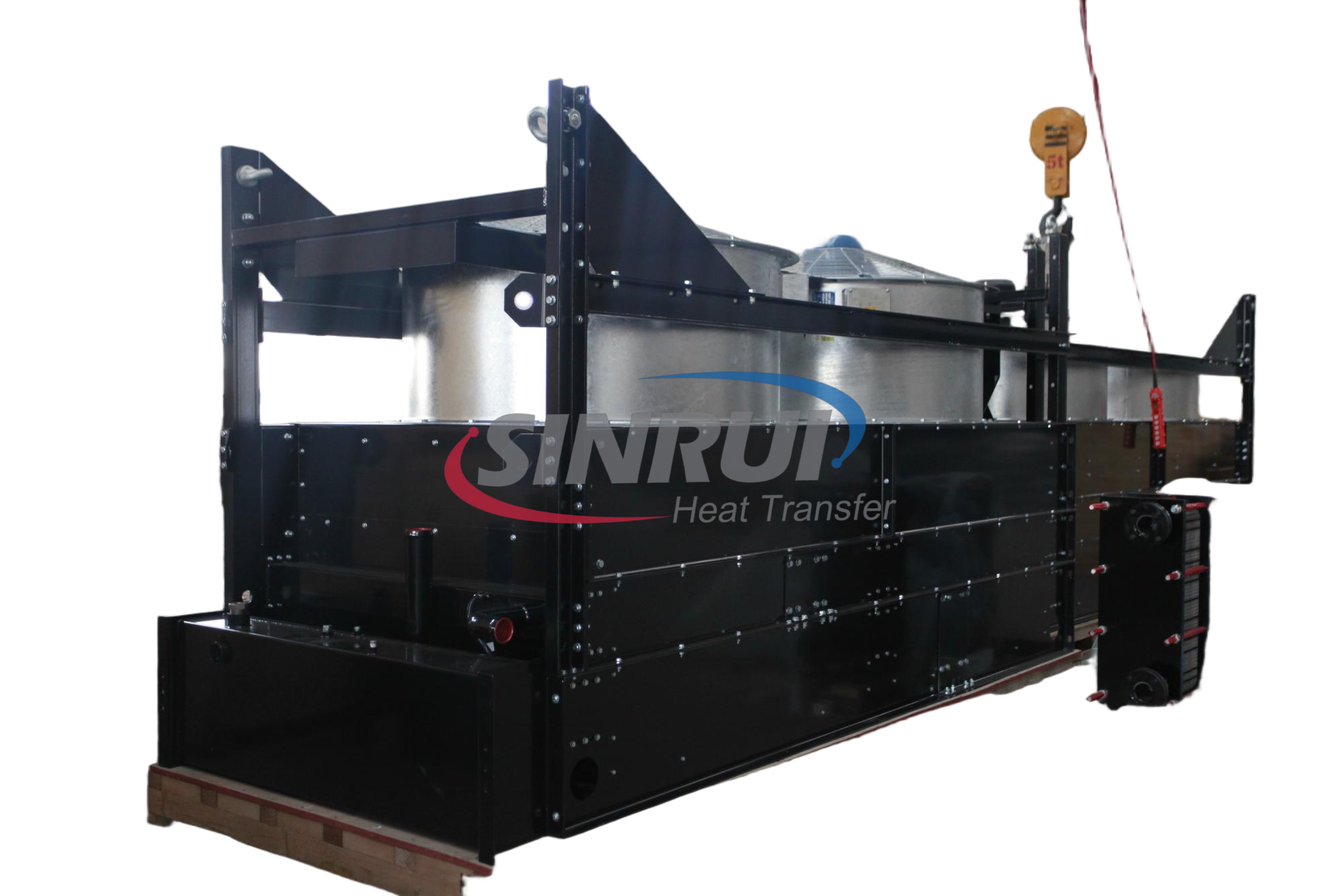

Dry cooler for power plant
Heat Transfer capacity: 1410kw
Cooling medium: Oil
Medium flow rate: 104.6m3/h
Inlet medium temp: 66
Outlet medium temp: 54
Inlet air temp: 45
Power Supply: 440v/3ph/60Hz
Material: Cu tube, golden coated AI fin condenser, galvanized sheet frame
Maintance
Customization
SINRUI customized radiator design and manufacturing services for mining and industrial applications. For customers who wish to upgrade or modify from the original structure or material, our engineering team can provide technical drawings, performance evaluations, and structure redesign based on specific site conditions.
·We support tailored solutions including:
··Replacement of aluminum cores with copper fin - tube designs for improved durability.
··Adaptation of mounting structures for non - OEM equipment.
